Our lightest frame does not compromise; stiff and durable with fantastic ride quality.  As good as it gets.

Frame and Bike Pricing.  Frame Geometry Pro Stack and Reach.  Here is a hi-res image as well as a technical build detail of our newest Dragonfly (above) which features our PowerPost, Di2 Internal Battery and Wiring System and SuperClean front end.  The Dragonfly tube set was designed to build the lightest possible bicycle frames without sacrificing stiffness, durability and ride quality.  How did we do?  Consider this 10 page feature.

Please read this review of our Dragonfly published in the June 2011 issue of Road Bike Action.  Zap, Editor of Road Bike Action, picked our Dragonfly as Bike of the Year in their January 2012 issue.  On the heels of this honor, they asked us to build the frame module, a Calfee Adventure, for a gravel road project bike; the 10 page feature was published in the October, 2012 issue and the results are in; RBA editor Neil Shirley won the King of the Mountains competition and second overall in Crusher in the Tushar aboard this Dragonfly Adventure.  Here is a link to complete coverage of the bike, rider and race.  This video captures Neil and the balance of the Pro field throughout the difficult day; rain, gravel, altitude…

We use high modulus carbon fiber (66msi) in all the tubes as well as the lug areas. Previously, a frame built with all high modulus fiber would be too brittle. We incorporated Boron fiber into the three main tubes to add some toughness and compressive stiffness. Boron is an attractive reinforcement because the resulting composite combines superior tensile, compressive and flexural strengths, high modulus, and low density in one system. Combined with the super high tensile stiffness of the carbon, the result is a frame material with the highest stiffness-to-weight ratio on the market.

The video (above) captures a 15 pound Dragonfly with our proprietary Di2 Internal Battery and Wiring System.  The bike also features our full-carbon BarStem, a PressFit 30 BB shell, painted logos as well as a new stock color for Calfee, pearl white.

The use of boron fiber has come of age with its use in our high performance bicycle frames. Bicycle weights have dropped from 18 pounds back in the 1980s to 14 pounds or less in 2010. Much of this weight savings comes with the use of carbon fiber composites. As bicycle companies compete in the arms race to make even lighter, stiffer bikes, safety and durability are pushed to the limit. High modulus (66 Msi and greater) carbon fiber is being used to make stiff yet thin walled tubing. These tubes can be vulnerable to damage from a variety of real world sources. When slightly damaged from a pebble thrown up by a passing car, or an unfortunate event during a group ride or race, a thin walled tube can rapidly degrade to an unsafe condition. Our very popular Calfee Carbon Repair business is evidence of this common failure. Using boron filaments in the tube laminate mitigates this problem by significantly enhancing the tubes structural performance.

Calfee Dragonfly weighs only 2.1 pounds in a 54cm size, delivers power as well as any large diameter, thin wall frame, has superior vibration dampening, compressive and impact strength, and is protected by a 25 year warranty.

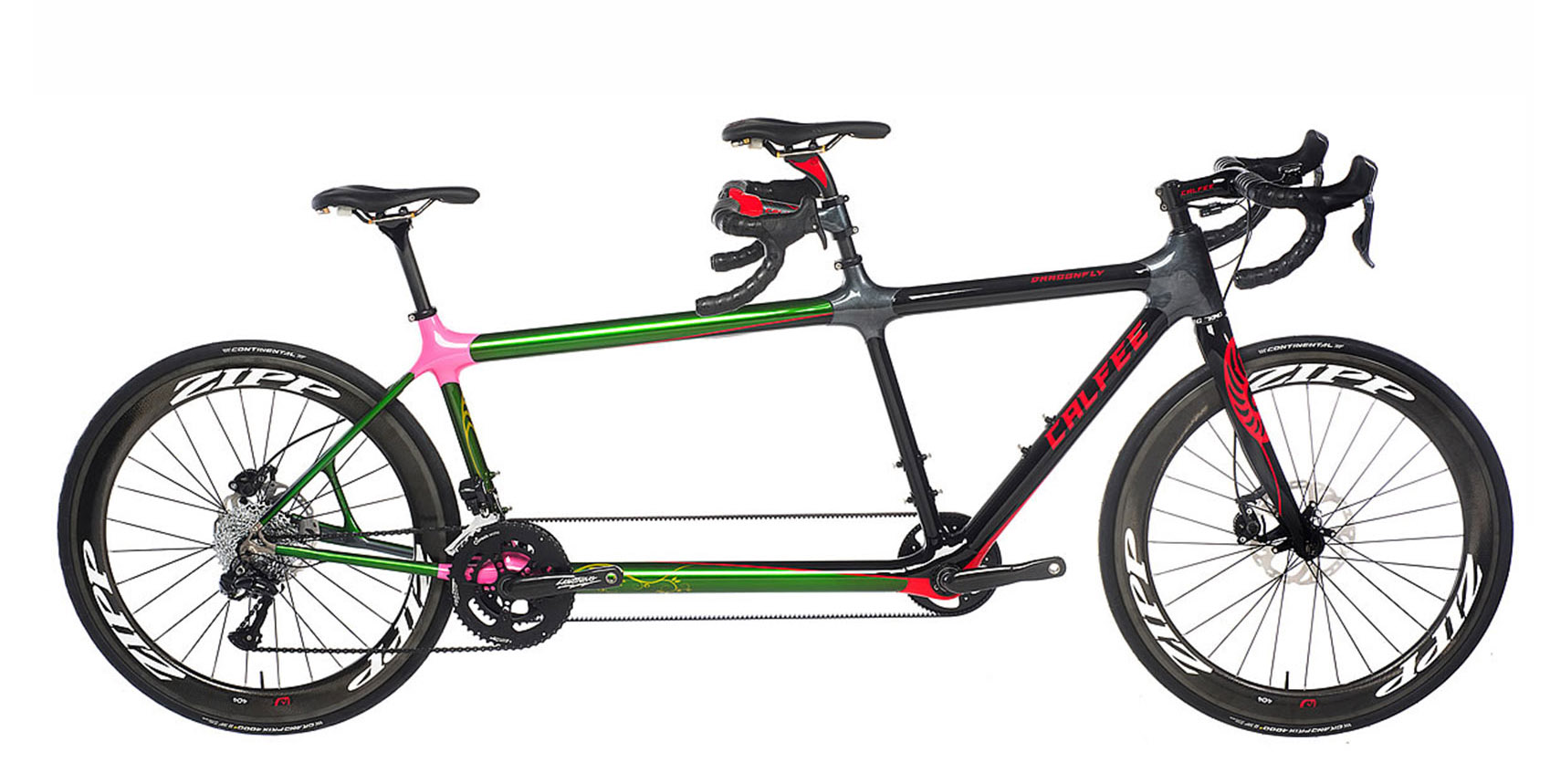

Dragonfly single and tandem lugs are pressure molded from high modulus fabric. With Dragonfly singles, lugs are made with carbon fabric formed around metal mandrels. These lugs and pre-mitered tubes are easily bonded together because they are so compatible. The carbon fibers are carefully oriented to put strength exactly where it’s needed while minimizing weight. Gussets are integrally formed with the fabrication of the joints, eliminating the inherent weakness of the tube and lug joint found in many other manufacturers designs. They are then meticulously carved to the optimum shape, taking into consideration the weight and intended use by the rider. They happen to look good because of their form-follows-function aesthetic.

The dropouts are also carved out to their optimal shape, saving 15 grams off the standard dropouts. This may not seem like much, but the way to build a 12 pound bike is to address every component and look for opportunities for weight savings, no matter how small. The trick is to do it without sacrificing strength and durability. As in nature, the Dragonfly is one of the most optimized and evolved structures to be found.

Dragonfly Features:

  • High tech boron/66 msi carbon fiber hybrid tubing
  • High modulus carbon fiber pressure molded lugs
  • Extra profiled titanium dropouts
  • Optional S and S Machine couplers
  • Optional PressFit 30 carbon bottom bracket shell
  • Optional head tube and seat tube extensions
  • Optional rear axle spacing, tire clearance, brake type, cable routing and threaded eyelets
  • Optional custom frame geometry
  • Frame stiffness options
  • 25 year warranty

Dragonfly Benefits

  • Lighter, stiffer than Tetra and Luna
  • As stiff as other carbon frames but more comfortable; no buzz
  • More durable than other 2 pound frames
  • History meets hi-tech with sculpted, carbon lugs



This model available in the following geometry:
