Calfee BarStem

BarStem Pricing

Purchase a Calfee Stock BarStem or you may also have any carbon bar and carbon stem laminated to create your very own Calfee BarStem. Any diameter carbon fiber handlebar and stem can be made into a BarStem (Calfee Handlebar Reach 78mm/Drop 123mm).

Introduced in 2010, our full-carbon BarStem features a Calfee-sourced bar and stem modified by Calfee. This full-carbon BarStem is lighter and eliminates the need to bond an aluminum clamp to a carbon stem extension. Weight weenies will enjoy our new SuperLight BarStem; we use 100 MSI carbon fiber to laminate exotic carbon handlebars from Schmolke or MCFK to modified Calfee or MCFK stems to achieve sub 230 gram complete BarStem weight. Consider the SuperLight BarStem ($500 with your bar and stem) on the

8.88 pound complete road bike from the tuners at Fair Wheel Bikes.

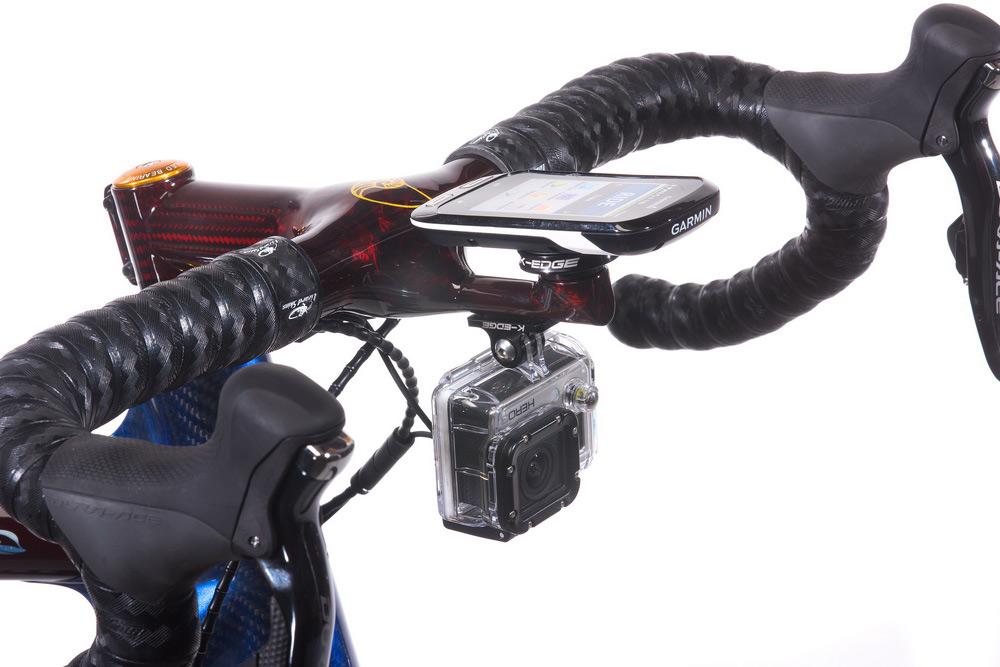

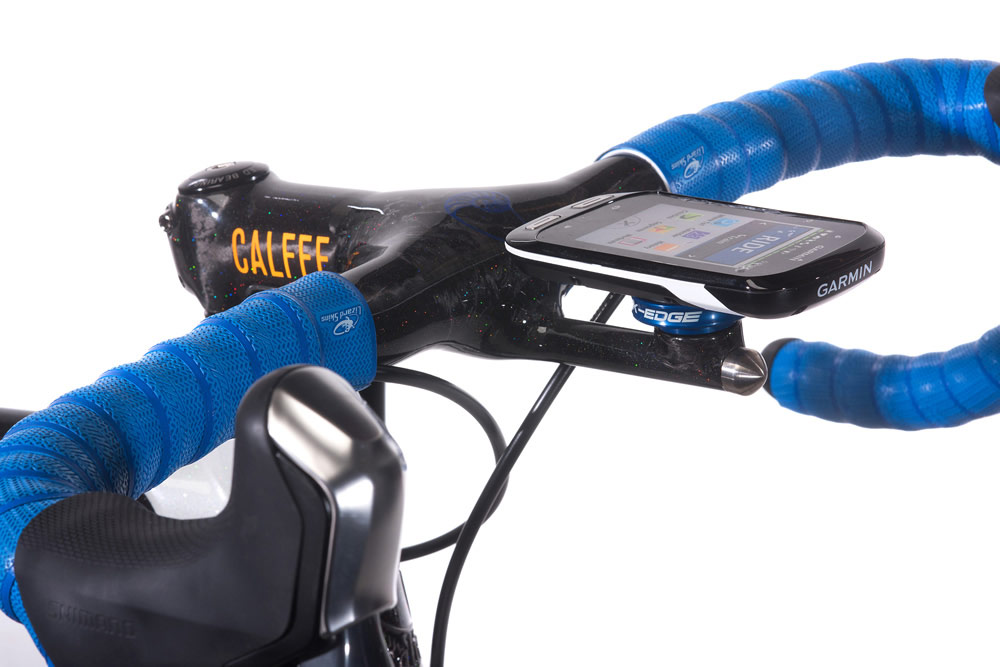

We’ve executed an integral mount for a Garmin a handful of ways; we’ve arrived at this convention (see gallery below). K-Edge manufactures a fantastic mount for a Garmin that we are happy to employ; we modify their handlebar clamp, retaining only what is required to ensure integrity in lamination and to preserve fore/aft adjustability. The quarter-turn component can easily be removed.

You can select any color combination you like. This option will retail for $150, including the K-Edge mount. Unlike competing products, our one piece BarStem allows the marriage of personalized and optimized individual components; lighter, stiffer, stronger, more absorbent and better fitting.

Calfee Bar Stem Red

BarStem Benefits:Calfee full-carbon BarStem with a 110mm stem extension, 83 degree stock handlebar angle, and 42cm 3T Ergonova Team handlebar in our nude finish. As shown, this BarStem with carbon clamp retails for $750.

  • Safer use of carbon bars; no stem clamping abuse on the notch sensitive carbon.
  • Lighter weight without loss of stiffness; 275-320 grams for a typical setup
  • Improved vibration dampening; more carbon = more vibration dampening
  • More comfortable; complete personalization of bar tilt and components improves fit
  • Personalized finish; BarStem unit can be finished to match the frame

For only $150 extra, we can add an aesthetic layer of hemp fiber to our full-carbon BarStem, to compliment our Bamboo frames.

Custom BarStem; if you’d like to set the angle of the bars (Bar Tilt) yourself, you’ll need to order a Custom BarStem. Send the exact bar with stem clamped in the position that you have tried and approved. If you’d like to purchase the bar directly through Calfee, we’re happy to mail you the bar for custom fitting.

Stock CALFEE BarStem

Available BarStem combinations Bar width
Stem length/angle 40 42 44
80/+6 yes yes yes
80/-6 yes yes yes
90/+6 yes yes yes
90/-6 yes yes yes
100/+6 yes yes yes
100/-6 yes yes yes
110/+6 yes yes yes
110/-6 yes yes yes
120/+6 yes yes yes
120/-6 yes yes yes

Stock 80 degree Tilt Angle; The ends of the bar will point 6-7 degrees down when mounted on your bicycle (owing to the head tube angle). Shifter/Brake hoods will then be positioned as flat to the top of the bar as possible.

BarStem w/carbon clamp

Range of available stem extension lengths; 7.5cm, 9cm – 13cm
Stem rise availability; -6 or +6 degrees
Steerer tube availability; 1 1/8″
Stock bar angles; 80; ends of bar point 6-7 degrees down (best for traditional bar)
or 83; ends of bar point 9-10 degrees down (best for newer compact/ergo bars)
Custom angles; Yes, see Custom BarStem, + $50 (on prices below)
Cost w/nude finish; $600 + Bar
Cost w/stock Calfee paint; $750 + Bar
Cost w/custom paint; $600 + Bar + Paint Quotation
This drawing illustrates a Calfee BarStem with aluminum steerer clamp fitted into the jig that will set handlebar angle.

This drawing illustrates a Calfee BarStem with aluminum steerer clamp fitted into the jig that will set handlebar angle.

Clamped Handlebar Warning:

If you are currently riding a carbon handlebar, you should inspect it for cracks or indentations near the stem clamp. If you see anything that looks like damage to the handlebar, it should be replaced. The failure mode is this: The small amount of damage will initiate a crack, starting with micro-cracking of the resin; the crack will grow, causing a stress riser, which accelerates further crack propagation. Then, a sudden high stress event can cause a catastrophic failure of the handlebar.

The initial damage is usually caused by overtightening the stem clamp in order to keep it from slipping. Bars with a gritty grip surface are less likely to be overtightened.

Calfee will not make a BarStem from a handlebar that has been damaged.
